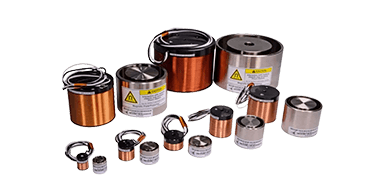

AVM圓柱型音圈電機

AVM系列圓柱型音圈電機,線圈中的電流與永磁體相互作用產生推力,實現直線運動。音圈電機最適合50 mm或更小的行程。5 mm到10 mm的距離是理想的。這些電機專為高精度低力運動而設計,適用于醫療,激光打標,半導體線焊,拾取和放置等精密應用。

產品詳情

對于需要在很短距離內快速移動的應用,音圈電機可以是很好的解決方案。音圈電動機本質上是單相線性電動機。它由一個中心帶磁鐵的線圈組成。向線圈施加電流會(huì )移動磁鐵。


ABM音圈電機:特點

A.無齒槽效應,運動順滑

B.動子質量輕,響應速度快

C.直驅設計,可靠性高

D.采用高性能永磁體,推力高




Akribis音圈電機

AVM 標準系列

電機規格直徑有效行程持續推力(N)(100℃)峰值推力(N)線圈重總質量
AVM12-6.412.76.40.913.535.012
AVM19-51951.757.889.032.8
AVM-20-1020101.567.6011.056.1
AVM-24-52452.1011.4012.041.7
AVM24-1024102.6514.8216.561.5
AVM30-1530154.6329.4036.0131.6
ANM40-2040209.9358.0567.0293.2
AVM60-25602526.35119.00215.0907.9
AVM90-30903089.10315.00820.02570.0





AVM 高推力系列

電機規格直徑有效行程持續推力(N)(100℃)峰值推力(N)線圈重總質量
AVM35-HF-735714.407253.0199.8
AVM40-HF-6.5406.516.5693.1568286.7
AVM50-HF-10501033.60140.00148.0701.0
AVM60-HF-10601051.20224.00236.51233.5
AVM90-HF-109010152.67610.68960.03360.0
AVM100-HF-1010010192.50770.001117.04417.0
AVM130-HF-2513025360.36764.401550.010850.0
AVM250-HF-20260201111.444715.205900.033100.0





AVM 特殊系列



電機規格直徑有效行程持續推力(N)(100℃)峰值推力(N)線圈重總質量
AVM14-HF-4-C1914.242.447.337.020.7
AVM14-10-C5614.2100.982.953.016.6
AVM-20-HF-6-C282065.6917.0613.561.0
AVM24-HF-5-C132455.8831.9221.5103.5
AVM30-7-C603075.6424.8015.3101.5
AVM35-HF-15-C22351519.7698.8080.7341.7
AVM35-HF-8-C3535827.43137.1685.2456.6
AVM35-HF-10-C31521016.7283.6078.0363.7
AVM40-20-C1840208.1147.3965.0270.0
AVM40-HF-6.4-C11-A406.418.1899.4049.0244.0
AVM50-HF-10-C15-A501025.20105.00142.0624.0
AVM50-HF-10-C34-A501037.57156.55144.0772.0
AVM75-HF-25-C127525124.69572.90710.02650.0
AVM75-38-C39753845.26192.02534.01811.0
AVM80-12-C8801233.71192.60124.01386.4
AVM90-30-C77903057.30202.60751.21886.3
AVM90-HF-5-C40-A90562.49220.92427.21941.8
AVM130-HF-10-C29-A13010162.10487.201080.06380.0
AVM150-HF-20-C5315020585.771757.301500.014200.0
